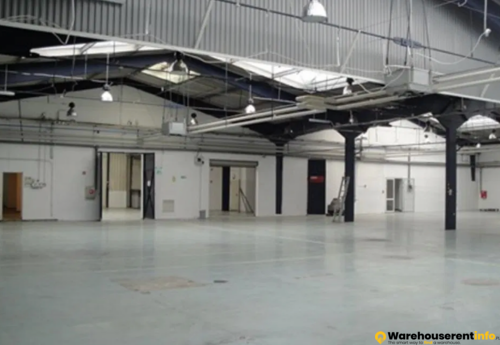

I / Object parameters - warehouse:

- building area - 3988.50 m2

- volume - 27,690.40 m3

- height to the ridge - 6.90 m

- working height - 6.00 m

The nature of the hall - production and warehouse with a social part and an office and laboratory part.

The hall has been divided into three parts:

- the first with dimensions of 24 x 54.44 m is separated with an internal sandwich wall from

- the second part measuring 36 x 54.44m

- the third part is separated by a brick wall with a thickness of 25 cm - plastered wall.

II / Ceiling, ceiling,

a / for the entire hall

- 2 x weldable roofing felt

- mineral wool, thickness 15cm

- PVC foil, thickness 0.25mm

- T55 trapezoidal sheet, thickness 0.75mm

- steel purlins

- steel supporting structure of the object - frame

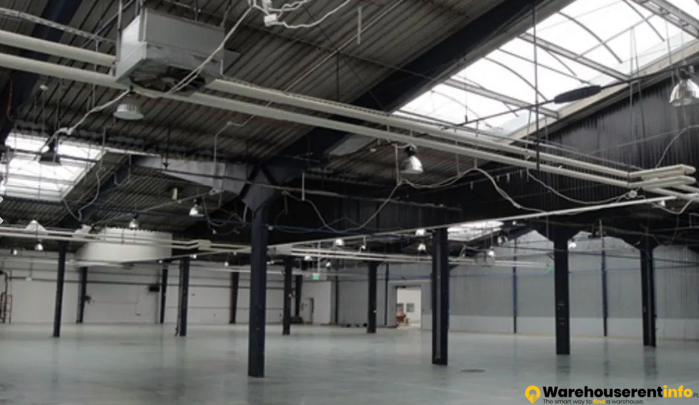

b / elements of roof skylights

- the hall has 3.0 x 12.0 m fixed polycarbonate skylights located on the roof

and smoke dampers 1.60 x 2.50 m located at the ridge

III / External walls

a / external walls not adjacent to other objects - layered

- T35 trapezoidal sheet

- PVC foil, thickness 0.25mm

- mineral wool, thickness 12cm

- T35 trapezoidal sheet

- steel supporting structure of the facility

b / the internal wall adjacent to the hall no.3

- brick wall, plaster, thickness 25cm

b1 / internal wall shared with the office building

- brick wall, plaster, thickness 25cm

b2 / internal wall common with hall no.1.

- sandwich wall

- T35 trapezoidal sheet

- PVC foil, thickness 0.25mm

- mineral wool, thickness 12cm

- T35 trapezoidal sheet

- steel supporting structure of the facility

wall of hall 1

- air void and plastered polystyrene, thickness 10cm

- aerated concrete wall with a thickness of 24 cm, with wreaths, plastered

c / Windows and communication elements - gates, doors

I / Outer wall

- windows from the undeveloped side, fixed at a height of about 4 m with dimensions of 6.0 x 1.2 m with reinforced panes

- sectional gates lifted upwards 4.00 x 3.0m and 3.0 x 3.0m.

- emergency exit door 90 x 200.

II / Internal wall from the side of hall 3.

- brick wall without glazing,

- 90 x 200 emergency exit doors in sectional doors.

III / Internal wall from the side of the office building.

- brick wall without glazing,

- fire escape door 90 x 200.

IV / Internal wall from the side of hall 1.

- brick wall without glazing,

- fire escape door 90 x 200 and fire gate 360 x 360 cm.

d / Floor - concrete (durobeton)

e / Internal walls made of full brick, thickness: 25 and 12 cm and aerated concrete, 24 and 12 cm thick.

Plastered walls.

f / In part of the hall there is an internal workshop and social part - a ceiling at a height of about 3.0 m made of plasterboards on a system frame.

g / Installations

- hydrant DN80 and internal hydrants HP52,

- electric,

- lightning protection,

- what - heating devices

- gravity roof ventilation - yes

- sanitary - in the sanitary and social part.

- the hall has smoke barriers and a smoke exhaust system
